What is cover crop diversity, and how is it measured?

Good question — and an important one, because "diversity" gets used loosely in cover crop marketing. There are really two different things hiding under that one word, and telling them apart will save you money. There's also a hard WI reality about whether you can establish a diverse mix at all after grain corn, which I'll get to.

What "diversity" actually means

Species diversity is just how many species are in the mix and how evenly they're represented. Researchers boil this down to one number, the Shannon index, which blends richness (how many species) and evenness (how balanced they are). A 12-species blend has high species diversity.

Functional diversity is how many distinct *jobs* the mix covers — the functional groups. The three standard groups each do something different (SARE 2021):

• Grasses (e.g., cereal rye): dense fibrous roots that scavenge leftover nitrogen and build soil organic matter the fastest.
• Legumes (e.g., red/crimson clover, hairy vetch): fix atmospheric nitrogen and feed pollinators.
• Brassicas (e.g., radish, turnip): large taproots that create biopores and root channels and can improve infiltration (documented relief of measured compaction is variable) and pull up nutrients.

The whole point of mixing across groups is to capture several of those services at once and open up more niches for soil microbes.

The honest finding: function beats count

The most rigorous regional study on this (11 on-farm sites in SE Nebraska, mixes from 1 to 18 species drawn from six functional groups) found that bumping up species *count* alone gave only about a 2.3% biomass effect — not statistically significant — while adding functional *groups* gave roughly a 29% biomass increase. And critically, no mixture at any site produced more aboveground biomass than the most productive pure stand (Florence et al., PLOS ONE 2019). That 29% comes from a six-functional-group design, not the simplified three-group frame I'm using here to teach the concept — so read it as evidence that *function matters*, not as a number tied to a grass/legume/brassica trio. Penn State weed work agrees: cover crop richness reduced weed biomass, but richness explained only about 12% of the variation, and several mixes merely matched — didn't beat — the best single species (Baraibar et al. 2018, Weed Science, doi:10.1017/wsc.2017.59).

Translation: adding a 12th species of the same type buys you almost nothing. Adding a *different function* — a legume and a brassica alongside your rye — is what moves the needle, but a simple high-biomass mix can match a fancy diverse one. Biomass is doing most of the work; diversity is mostly a way to get reliable biomass and a broader set of services. One caveat to keep front-of-mind: those effect sizes come from SE Nebraska, where legumes and brassicas reliably establish in the fall. WI after grain corn is a different story.

How impact is measured

On the plant/agronomic side — the things a 1000-acre grower can actually capture (WSU CSANR 2019):

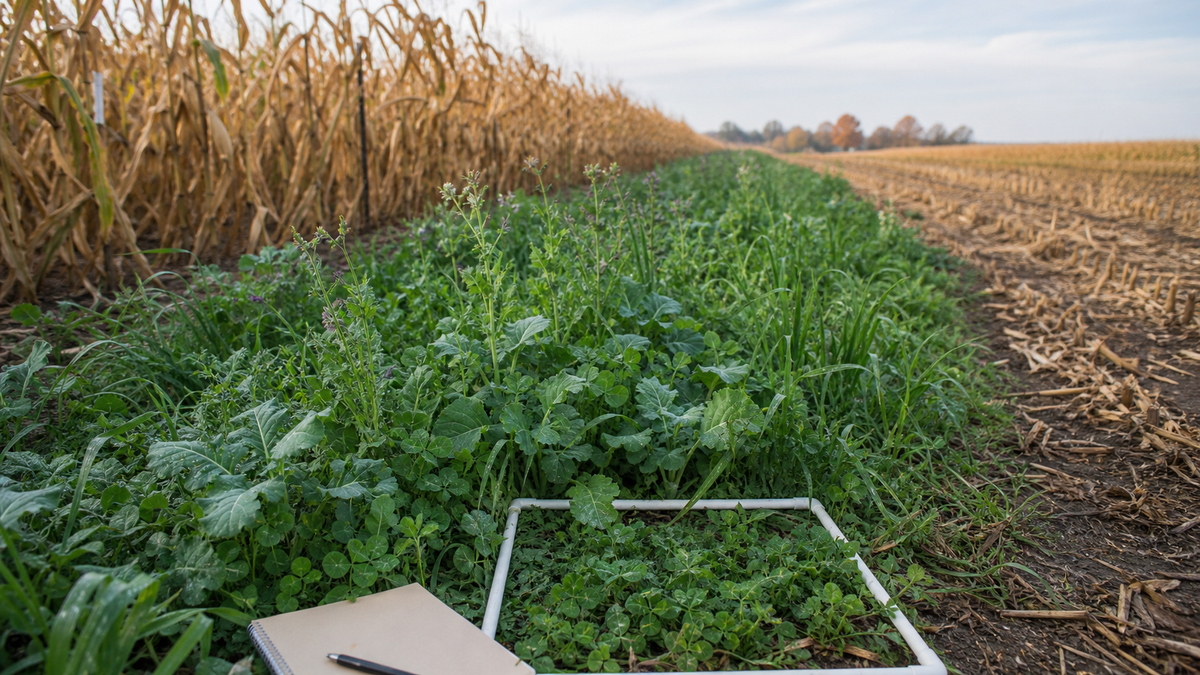

• Aboveground biomass (dry-matter lbs/ac, clipped from a known area like a 0.25 m2 quadrat) — the single most predictive metric; most benefits scale with biomass, not species count.
• Percent green ground cover — from photos via the free Canopeo app.
• Nutrient uptake — lab tissue analysis for N, P, K scavenged or fixed.
• Following corn yield — yield monitor or weigh wagon; the bottom line.

On the research/soil-biology side, you'll see Shannon and functional-group indices, plus slower lab metrics: microbial biomass and enzyme activity, arbuscular mycorrhizal fungi (AMF) colonization, and soil organic matter fractions. For example, a two-way rye-clover (legume-grass) cover crop increased the transfer of carbon from particulate (POM) into the more stable mineral-associated organic matter (MAOM) fraction more than rye or clover alone — but that came from a controlled greenhouse 13C tracer experiment, not a field-yield result (Soil Biology & Biochemistry 2025). These are valuable science but slow and lab-heavy — not where a producer starts.

What this means for your WI grain-corn ground

Here is the part that changes the practical answer. UW-Madison Extension explicitly does NOT recommend planting legumes or brassicas after corn grain in Wisconsin — there aren't enough growing-degree days left in fall for brassicas to provide benefit or for legumes to nodulate and fix N. After grain corn, cereal rye is the workhorse (the only reliable option in northern WI; rye or triticale in southern WI), planted by about late October. So a diverse mix *drilled after harvest* will largely fail — you'd pay for seed on two species that don't establish.

If you want functional diversity on grain-corn acres, the realistic route is interseeding into standing corn at about V5-V6 (mid-June). A single 2014 season at the Arlington Agricultural Research Station showed rye, red clover, and radish interseeded at V5 establishing without a measured corn yield penalty — but that's one site-year, and interseeded covers can compete with corn for water and light in dry years, so don't read it as an established "no yield penalty" result; your own replicated strip trial is the real test. Interseeding moves your binding constraint from the October harvest window to the June interseeding window — and it requires a modified grain drill or dedicated interseeder, which for 1000 ac is a buy/rent/custom-hire decision to make by spring, not at harvest. Before you commit, confirm your corn herbicide program is compatible (see below) — residual carryover is the usual reason interseeded stands fail.

One more caution worth respecting: WI annual-cropping research found cover crops didn't hurt soybean yield but some cover crops reduced corn yield (Agronomy Journal 2022) — which is exactly why a rye-alone control strip matters before you scale anything.

Bottom line

Don't chase species count. Cover the three functions only where you can actually establish them — which on grain-corn acres means interseeding, not drilling after harvest, and only with a herbicide program that won't kill the mix. Push for biomass, and let a replicated strip trial against rye-alone tell you whether the mix earns its keep on your fields before you scale equipment and seed to 1000 acres.
